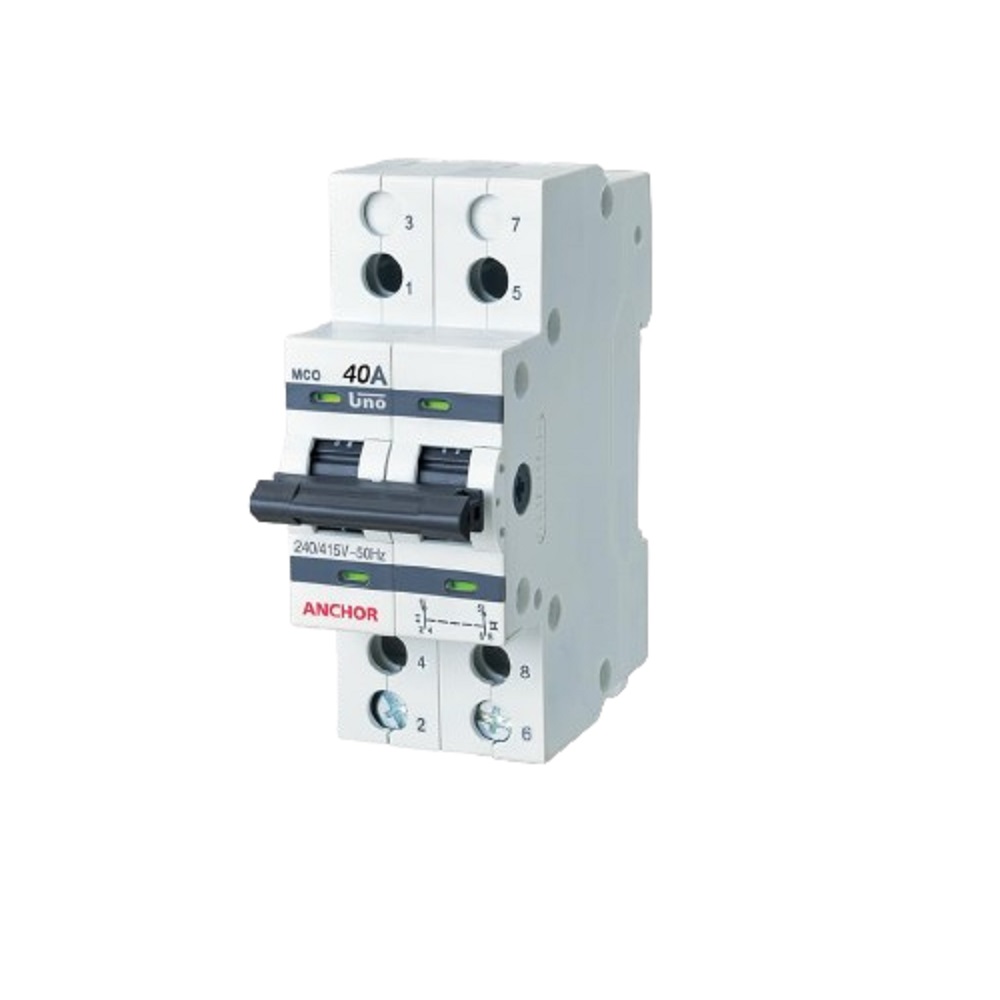

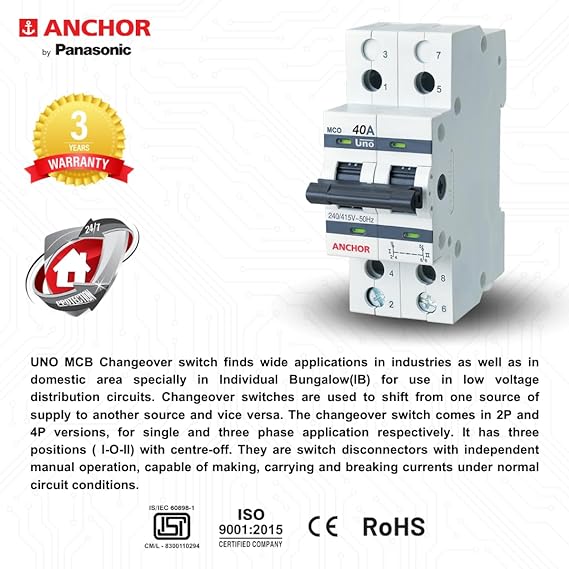

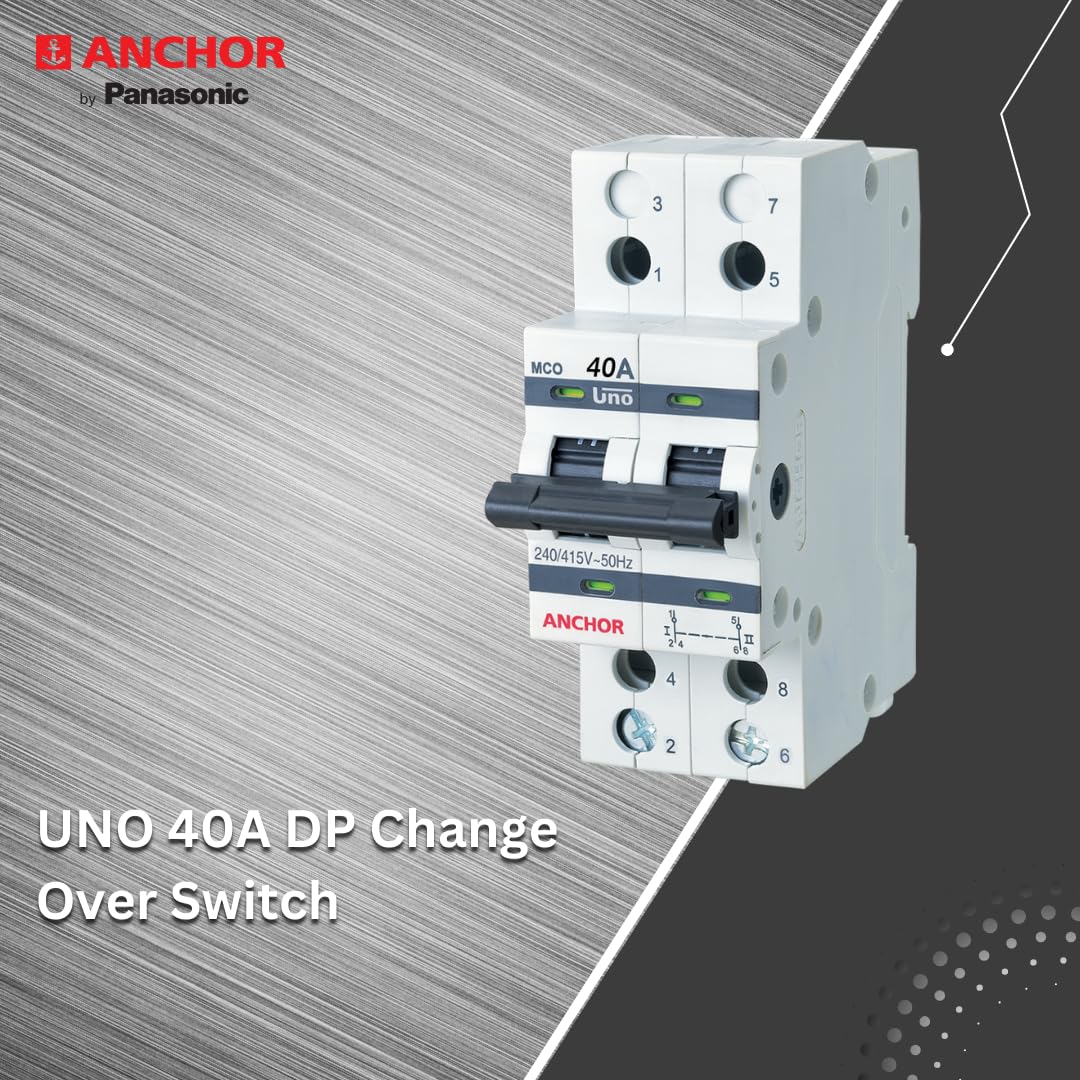

The Anchor by Panasonic UNO Series 40 Amp Dual Pole MCB Type Change Over Switch is a high-quality electrical switch designed for reliable and safe power management in residential, commercial, and industrial settings. This switch features a 2-pole configuration with a C Curve MCB, providing robust protection and efficient change-over capabilities.

Key Features

• Dual Pole Configuration: Ensures comprehensive switching and protection for two circuits simultaneously.
• 40 Amp Rating: Capable of handling substantial electrical loads, making it suitable for various applications.
• C Curve MCB: Designed to trip during moderate inrush currents typically found in inductive loads, providing effective protection.
• High Durability: Made with high-quality materials to withstand rigorous use and ensure long-term reliability.
• Easy Installation: Designed for straightforward installation in standard electrical panels.

Applications

• Residential: Provides safe and efficient power switching and protection for home electrical systems.
• Commercial: Ideal for offices, retail spaces, and other commercial establishments requiring reliable power management.
• Industrial: Suitable for factories, workshops, and other industrial environments where robust electrical protection is essential.
• Backup Power Systems: Facilitates seamless change-over between main and backup power sources.

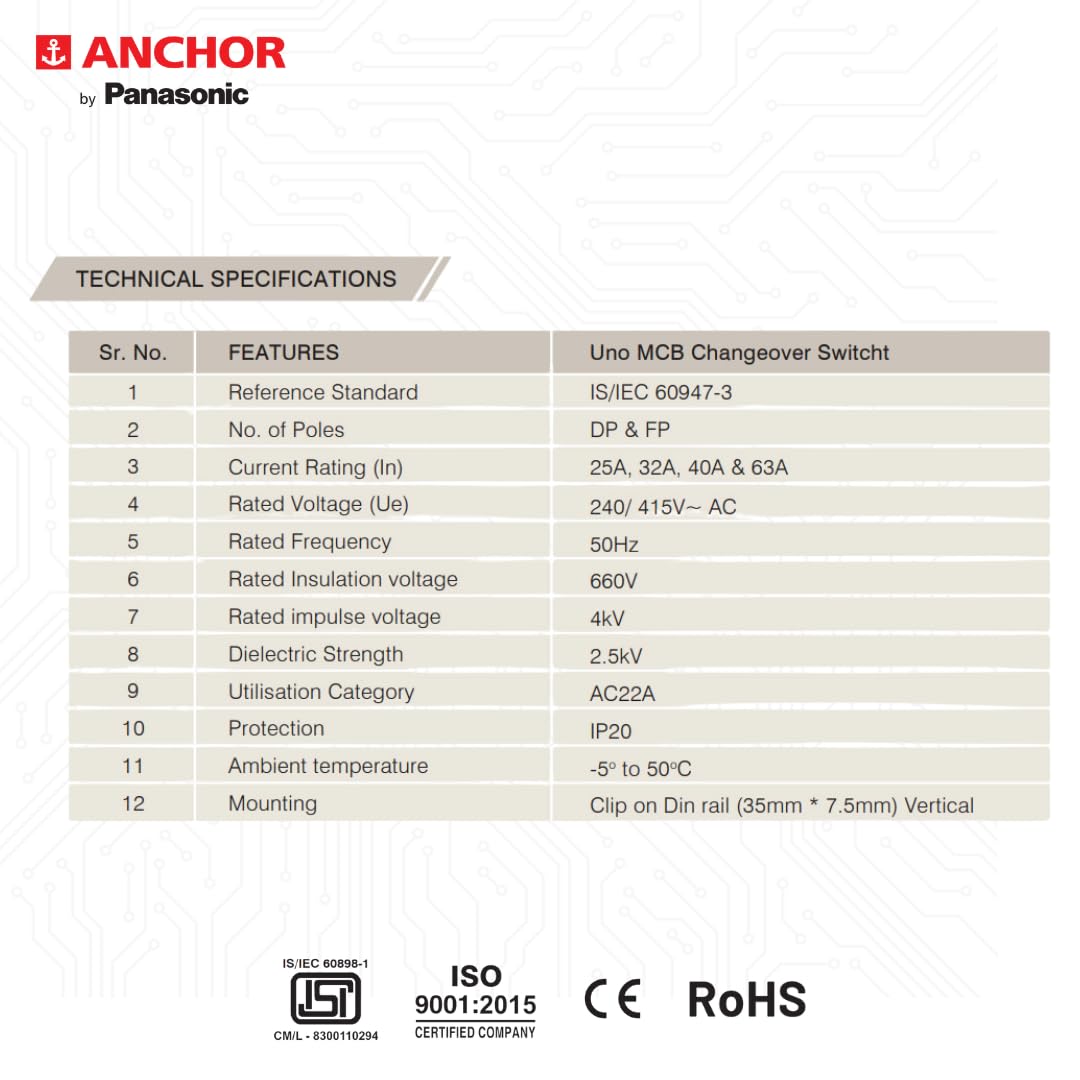

Technical Specifications

• Model: 98083
• Brand: Anchor by Panasonic
• Series: UNO Series
• Type: Dual Pole MCB Type Change Over Switch
• Current Rating: 40 Amp
• Poles: 2 Pole
• Tripping Curve: C Curve
• Voltage Rating: Typically 240V AC (confirm specific rating with manufacturer's datasheet)
• Breaking Capacity: Confirm with manufacturer's datasheet for specific breaking capacity

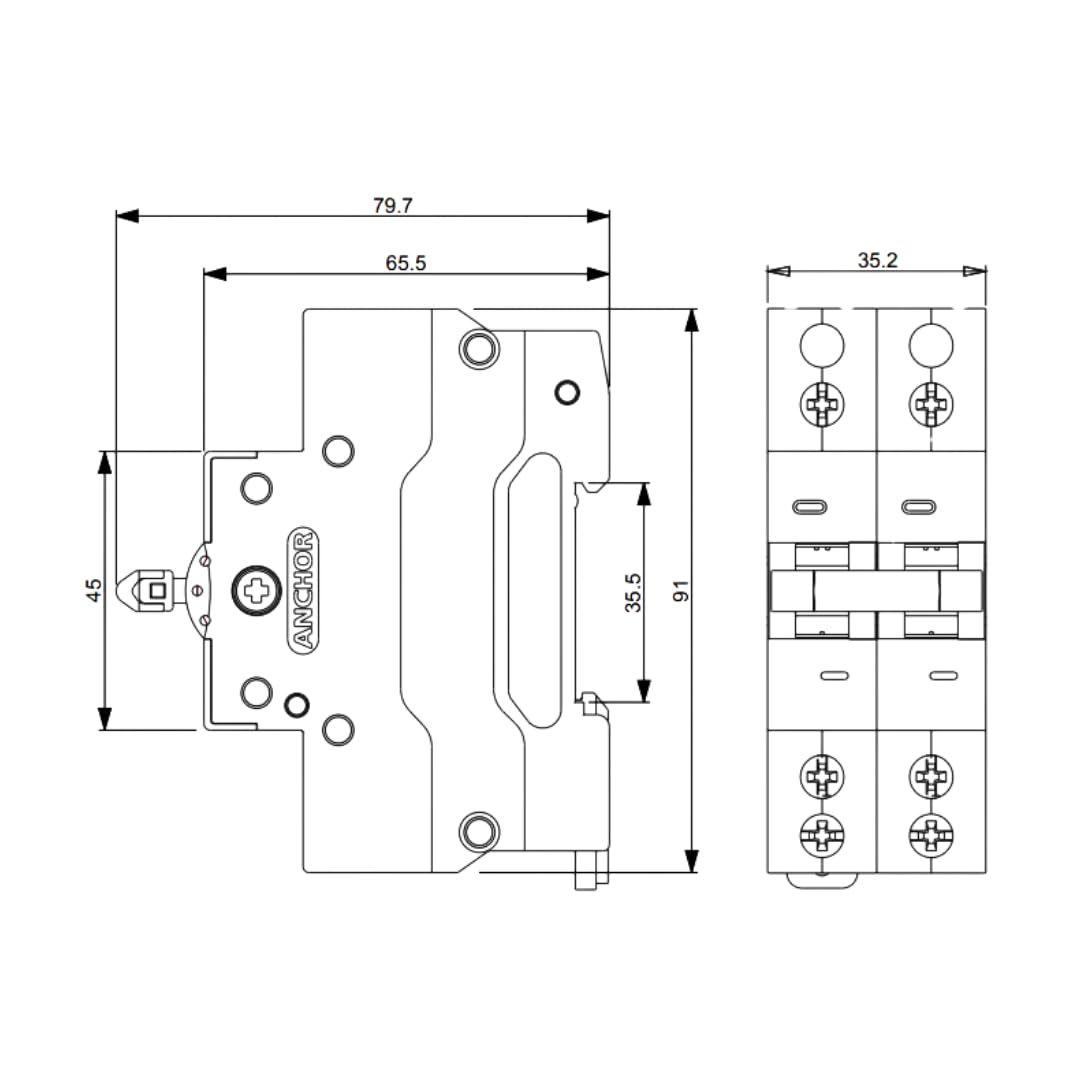

• Dimensions: Standard DIN rail mountable size (confirm specific dimensions with manufacturer's datasheet)
• Material: High-quality, flame-retardant plastic and durable internal components
• Standards Compliance: Complies with relevant IEC standards (confirm specific standards with manufacturer's datasheet)

Installation and Use

1. Safety Precautions: Ensure all power sources are turned off before installation to prevent electrical shock or injury.
2. Mounting: Install the change-over switch in a suitable electrical panel, ensuring it is securely mounted on the DIN rail.
3. Wiring: Connect the input and output wires to the appropriate terminals, following the wiring diagram provided by the manufacturer.
4. Testing: After installation, restore power and test the switch to ensure proper operation and protection.

Benefits

• Reliable Protection: C Curve MCB provides effective protection against overcurrents and short circuits.
• Versatile Use: Suitable for a wide range of applications, from residential to industrial settings.
• Easy to Install: Standard DIN rail mounting and clear wiring instructions make installation straightforward.
• Durable Construction: Built with high-quality materials for long-lasting performance.
• Efficient Change-Over: Facilitates smooth transition between power sources, ensuring uninterrupted power supply.

The Anchor by Panasonic UNO Series 40 Amp Dual Pole MCB Type Change Over Switch is an essential component for any electrical system requiring robust protection and efficient power management. Its reliable performance, ease of installation, and versatile application make it a valuable addition to residential, commercial, and industrial electrical systems.
