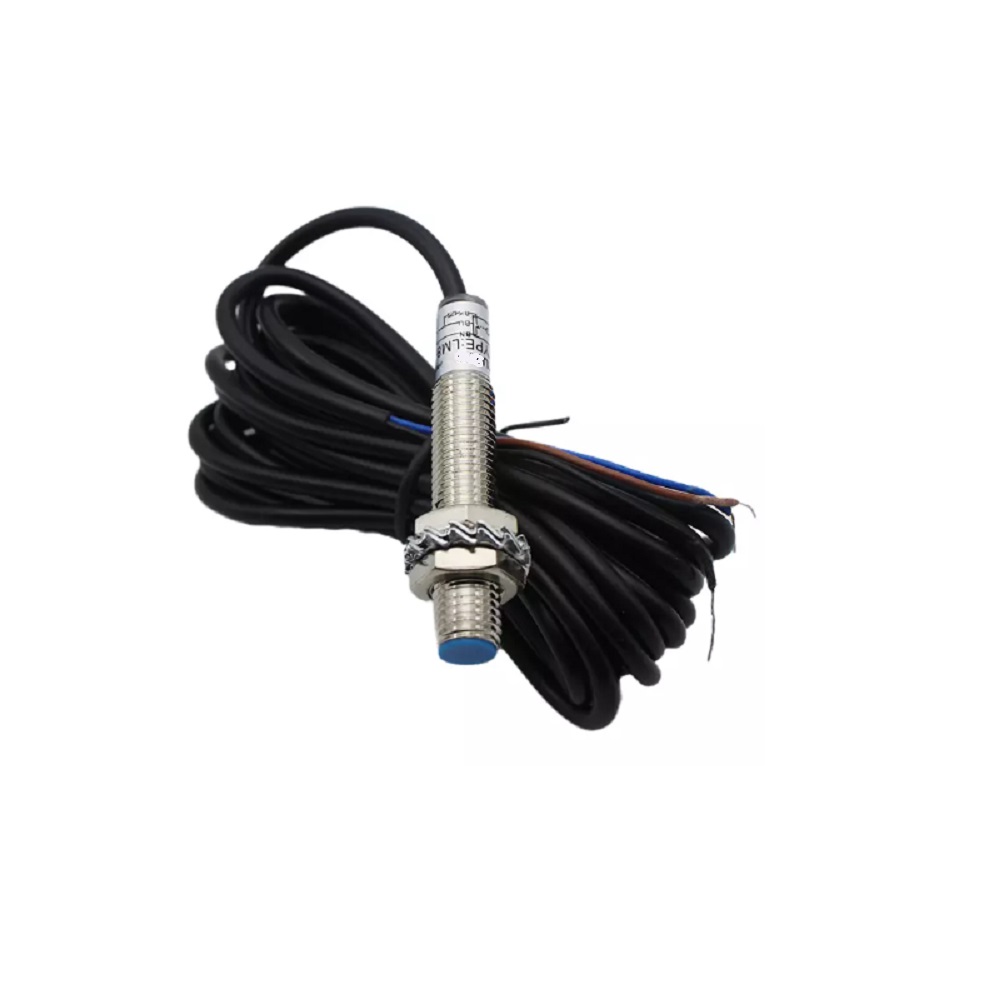

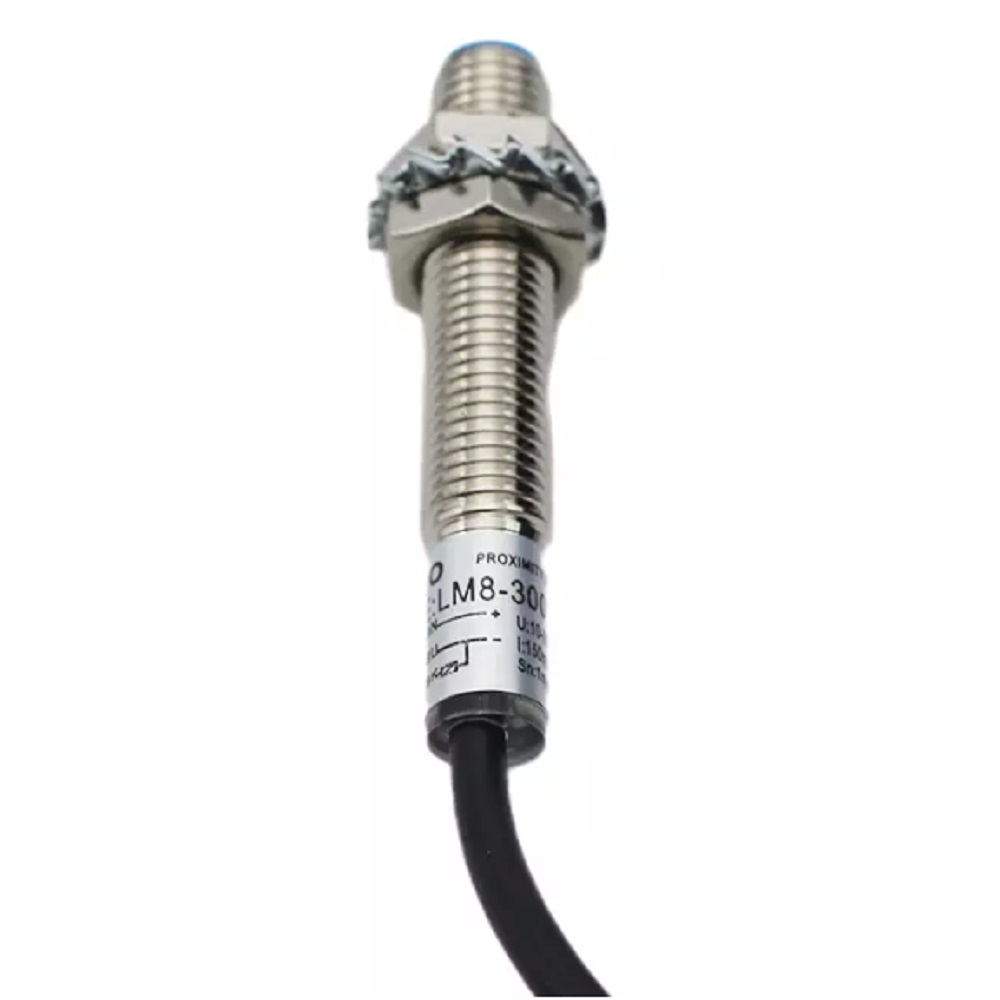

Enertech M8 NPN NC Inductive Proximity Sensor SN 1.5mm EN-PD08-1.5DN DC6-36V-Flush
Availability: In stock
₹ 185.0 (+18.0% GST extra)
(Min.Order)
The Enertech M8 NPN NC Inductive Proximity Sensor, model EN-PD08-1.5DN, is engineered for precise detection of metallic objects in various industrial automation applications. With a sensing distance of 1.5mm and a compact M8 housing, this sensor ensures reliable performance and easy integration into existing systems.
Key Features
- Sensing Range: Capable of detecting metallic objects at a distance of up to 1.5mm, providing accurate and reliable detection.
- Output Type: NPN Normally Close (NC) configuration, offering a dependable signal when a target is detected.
- Operating Voltage: Broad voltage range from DC 6V to 36V, ensuring compatibility with various power supply options.
- Installation Type: Flush mounting design, allowing for seamless and secure integration into equipment with minimal protrusion.
- Construction: Built with durable materials to withstand challenging industrial environments.
- Compact Design: M8 housing size, perfect for installations where space is limited.
- LED Indicator: Features a visual LED indicator for easy monitoring and troubleshooting of sensor status.
Applications
- Automated Manufacturing: Detects the presence or absence of components on production lines.
- Robotics: Ensures precise positioning and movement control in robotic applications.
- Conveyor Systems: Used for detecting objects to control the flow and sorting of materials.
- Packaging Machinery: Verifies the presence of items during packaging processes.
- Material Handling: Identifies and sorts materials in automated handling systems.
Technical Specifications
- Model: EN-PD08-1.5DN
- Brand : Enertech
- Sensing Distance: 1.5mm
- Operating Voltage: DC 6-36V
- Output Type: NPN Normally Close (NC)
- Mounting Type: Flush
- Housing Material: Stainless steel or nickel-plated brass (depending on specific model variant)
- Operating Temperature: Typically -25?C to +70?C (confirm with specific model datasheet)
- Protection Rating: IP67, ensuring resistance to dust and water immersion
Installation and Use
- Mounting: Install the sensor flush with the surface, ensuring correct alignment with the target object.
- Wiring: Connect the sensor to an appropriate DC power supply (6-36V) and integrate the output into the control system.
- Calibration: Adjust the sensor as needed to achieve optimal detection performance.
- Testing: Test the sensor with target objects to confirm accurate detection and response.
Benefits
- Enhanced Reliability: Provides consistent and accurate detection, reducing errors in automated systems.
- Versatile Power Options: Compatible with a wide range of DC power supplies, offering flexibility for various applications.
- Easy Installation: Compact, flush design allows for straightforward installation in confined spaces.
- Durable Construction: Designed to withstand harsh industrial environments, ensuring long-term reliability and performance.
The Enertech M8 NPN NC Inductive Proximity Sensor (Model No: EN-PD08-1.5DN) is an excellent choice for a variety of industrial applications, delivering precise sensing capabilities and robust performance to enhance the efficiency and reliability of automated systems.
