Prominent & Leading Manufacturer,Dealer,Distubutors,Importer,Traders,Supplier Safety Light Curtain Parallel Beam GSL-0620 Greatselec from Pune India, we offer Safety Light Curtains,Safety light curtain hand protection ,Safety light curtain Finger protection,Safety light curtain Body protection for Safety Light for Mechanical Press, Safety light curtain Accessories :- Control unit-wall mount,Control unit-din mount,Mounting stand,Vibration dampers.etc

MODEL : GSL-0620

OVERALL HEIGHT(MM) : 180MM

PROTECTED HEIGHT(MM)  : 100MM

NO OF BEAM : 06 BEAM

PITCH : 20MM

MAKE : GREATSELEC

FEATURES:-
An ISO 9001:2015 Certified Company
Greatselec offers Safety Light Curtains. 2 Outputs
Model also available, which available in following
three main categories:
1. Hand Protection
2. Finger Protection
3. Body protection / Part of Body.
Parallel beam and Cross beam type
models from ht. 90 mm to 1500 mm.
Inbuilt Controller facility where supply of the sensor is 24V DC and can
directly connected to PLC.
Controllers are available with supply voltage 230V AC, in Wall mounting,
Panel & DIN Rail mounting.
Self-checking facility provided for internal checking of the circuit for better
operation.
Protection Degree : Compiling with Ip67
Easy to Install & can be mounted in any position. Vertical / Horizontal.
Blanking/By-Passing individual channel is provided through software.

        *--------------------------------------------*

        *--------------------------------------------*

        *--------------------------------------------*

        *--------------------------------------------*

                 Parallel BEAM  24Vdc

      Above Model is without controller

   Note : Dual O/P Model Extra Rs 500/-

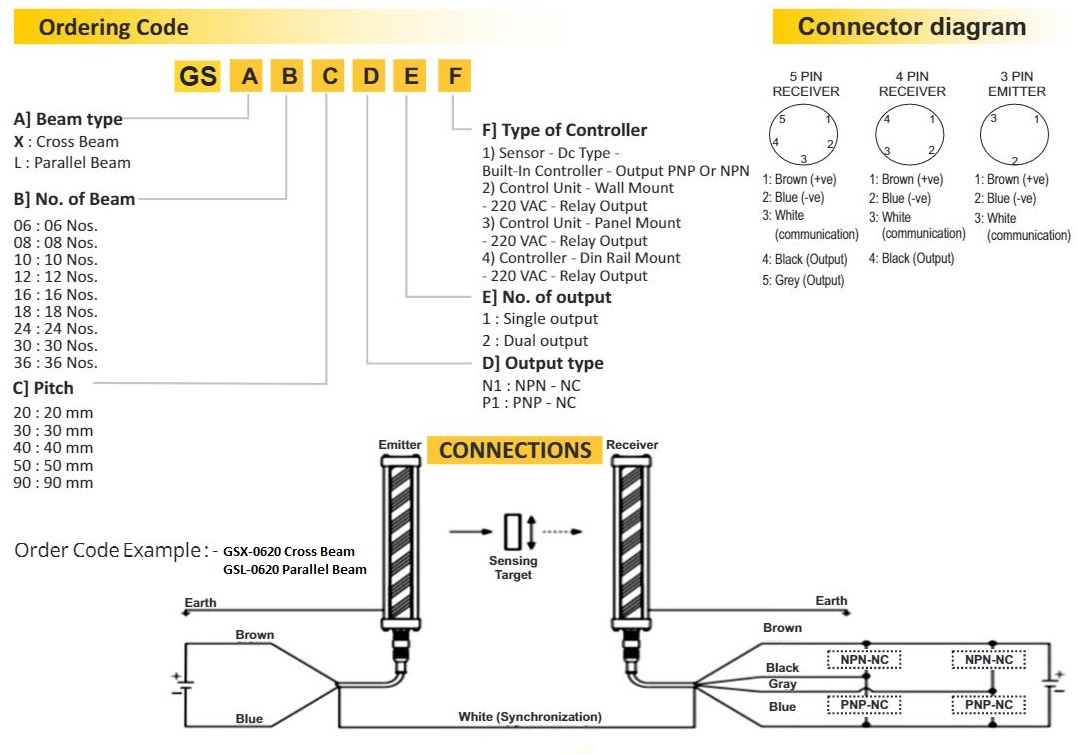

 Ordering Code.....................
