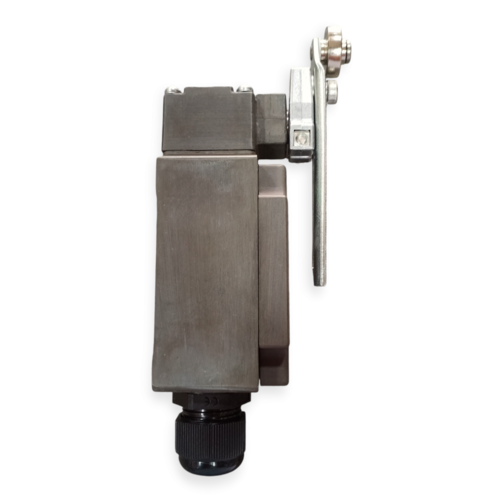

NG1VS-510-M LIMIT SWITCH TEKNIC EUCHNER
Availability: In stock
₹ 1090.0 (+18.0% GST extra)
(Min.Order)
NG1VS-510-M LIMIT SWITCH TEKNIC EUCHNER
Description
EUCHNER position switches are high-performance position switches with a long mechanical life; designed according to the European standard EN 50 041. The user can choose between lever arm or plunger drive and 10 different actuating heads with 4x90 adjustment.
Features
Robust and lasting design
Degree of protection IP67
Metal housing with 10 different actuating heads
Mechanical life up to 30 million operating cycles
With cable entry or plug connection
Switching element with snap-action function or automatic disconnection
Operating point accuracy +/- 0.002 mm max.
NG1VS-510-M LIMIT SWITCH TEKNIC EUCHNER Lever Arm Length Continuously Adjustable From 28 Mm To 75 Mm. Switching Element : Snap-action Switching Contact 1 Nc + 1 No Adjustment Options : Horizontal And Vertical 4 X 90? Switching Direction : Switches To The Right, Left Or Both Sides Connection Type : M20x1.5 Actuating Force : Min. 15 N Mechanical Life : 30 X 10x6 Contact Bounce Time : Max. 3 Ms Switching Principle : Snap-action Switching Contact Material Contact : Silver Alloy, Gold Flashed Housing : Anodized Die-cast Alloy Contact Closing Time : Max. 4 Ms Degree Of Protection : Ip67 Ambient Temperature :-25 ... +80 C |
|---|
