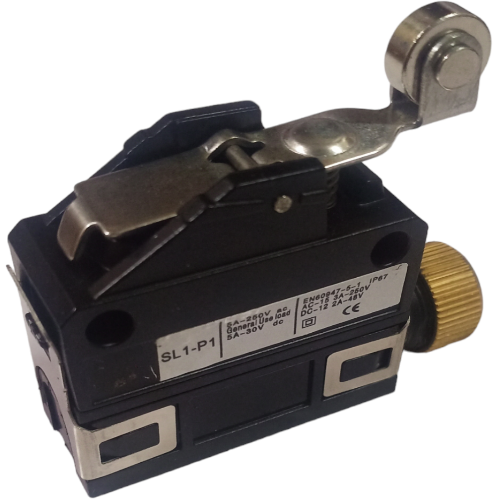

SL1-P Compact Horizontal Limit Switch Make GREATSELEC

Equalant Azbil SL1 Series Of General Purpose Compact Horizontal Limit Switches Offers A Robust Long-life And Maintenance-free Design With A Mechanical Life Of 20 Million Operations, Owing To A 2 Piece-spring Mechanism. These Maintenance-free Switches Have A Superior Seal: Oil-resistant/immersion-proof Type (Jis) And Ip67 (Iec). O-ring And Integral Diaphragm Seal Are Built In. The Small, Space-saving Body Can Be Tightly Gang-mounted And Have High Sensitivity (Movement Differential = 0.1 Mm). Contact Form Sing-pole Double Throw (Spdt). Contact Type- Standard Load Type: Pure Silver Rivet, Low Current Load Type: Gold-plate Rivet, M3 Screw Terminal,

Limit Switches Short Lever Roller  1NC/1NO SPDT Snap

This SL1-P micro switch is commonly used in machinery. SL1D switches are made by several companies and branded as their own. The SL1-P switch may be by Yamatake, Honeywell, Azbil and others. They are often used in gearboxes as well as other common applications for SL1-P Switch like a zero return or overtravel switch.

SL1-P Switch Specifications:-

SL1-P has 1 NC and 1 NO contact

Short lever Roller type switch

Ampere Rating 5.0Amp

Maximum Supply Voltage  250 Vac

NEMA 3, 4, 13 and IEC IP 67 sealing

Robust long-life and maintenance-free compact horizontal-type limit switches with IP67 seal.

High sensitivity (M.D. = 0.1mm). Superior seal: oil-resistant/immersion-proof type (JIS) and IP67 (IEC).
